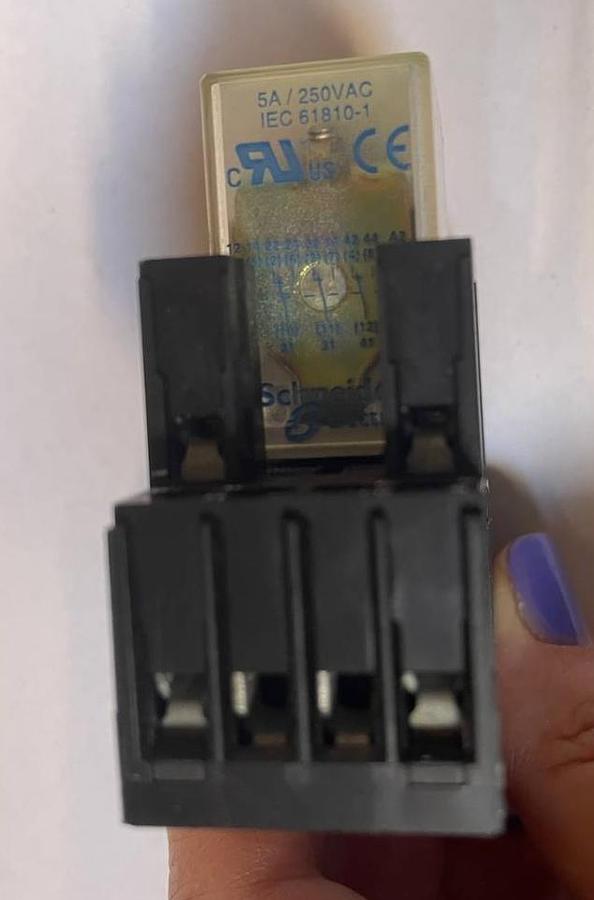

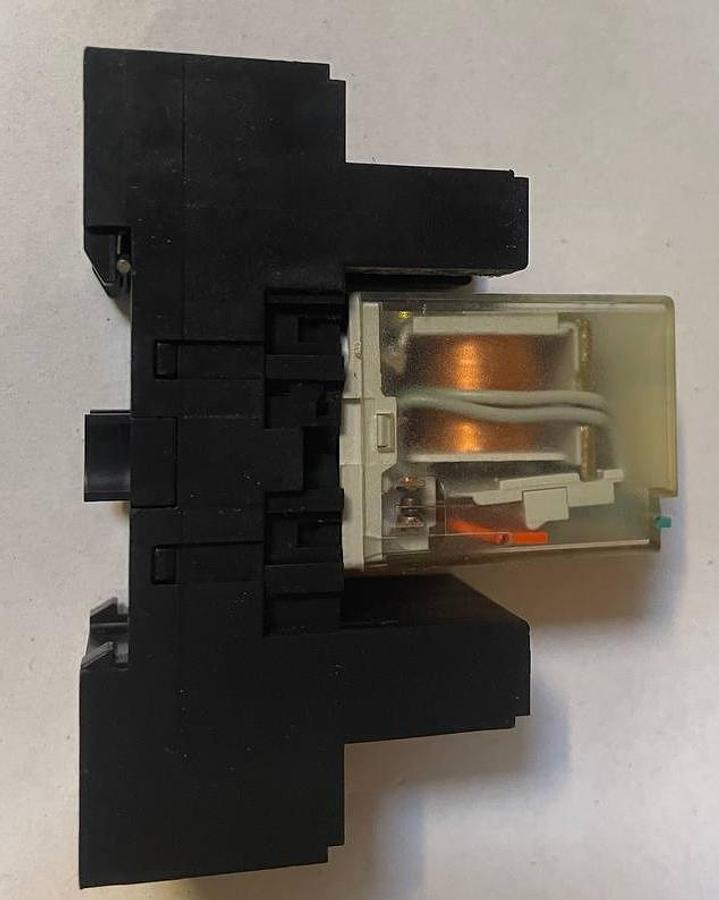

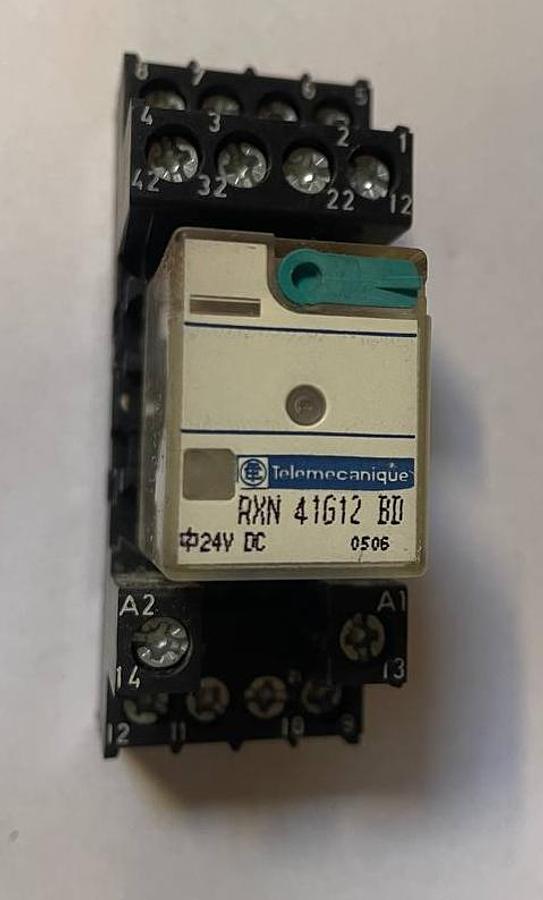

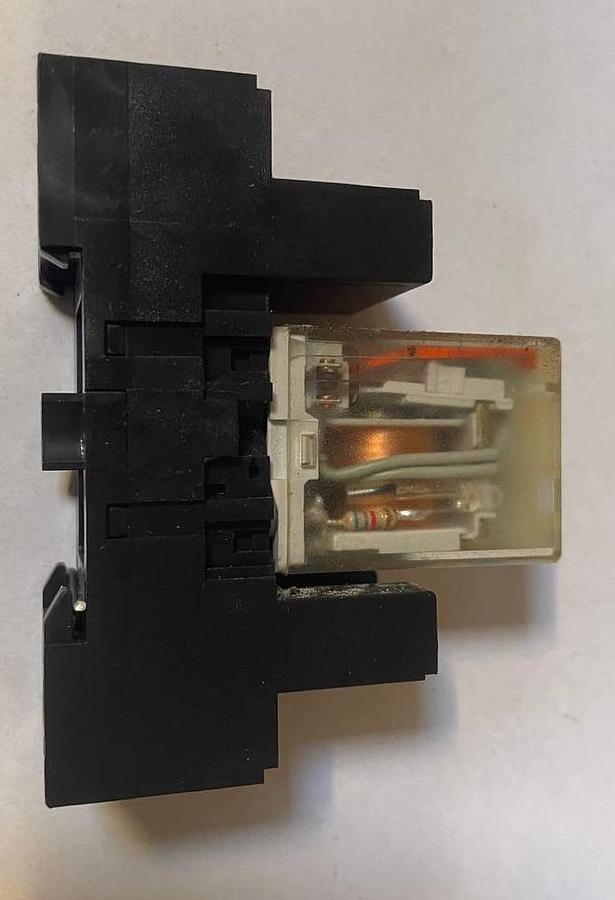

Telemecanique RXN41G12BD Intermediate electromagnetic relay

This is an intermediate electromagnetic relay from the Zelio Relay series from the renowned brand Telemecanique (now part of Schneider Electric). The kit includes the relay itself and a socket (base) for DIN rail mounting.

Technical Description:

Telemecanique RXN41G12BD Intermediate Relay

The Telemecanique RXN41G12BD is a reliable, compact industrial relay designed for contact multiplication and control command transmission between electrical circuits. It is widely used in automation cabinets, machine tool control systems, and lighting.

Key Features:

• Model: RXN 41G12 BD.

• Relay Type: Intermediate, electromagnetic.

• Control Voltage (Coil): 24 VDC.

• Contact Configuration: 4 changeover contacts (4 C/O or 4PDT). This allows simultaneous control of four independent circuits.

• Contact Current: Rated current up to 5 A at 250 V AC.

• Contact Material: Silver alloy (AgNi), providing high wear resistance.

Design Features:

• Mechanical Indicator: A built-in indicator window allows visual confirmation of contact status (closed/open).

• Test Button (Turquoise): Allows manual forcible contact closure to test circuit functionality without energizing the coil.

• Removable Design: The relay plugs into a socket (receptacle), allowing for quick replacement without disconnecting the wiring.

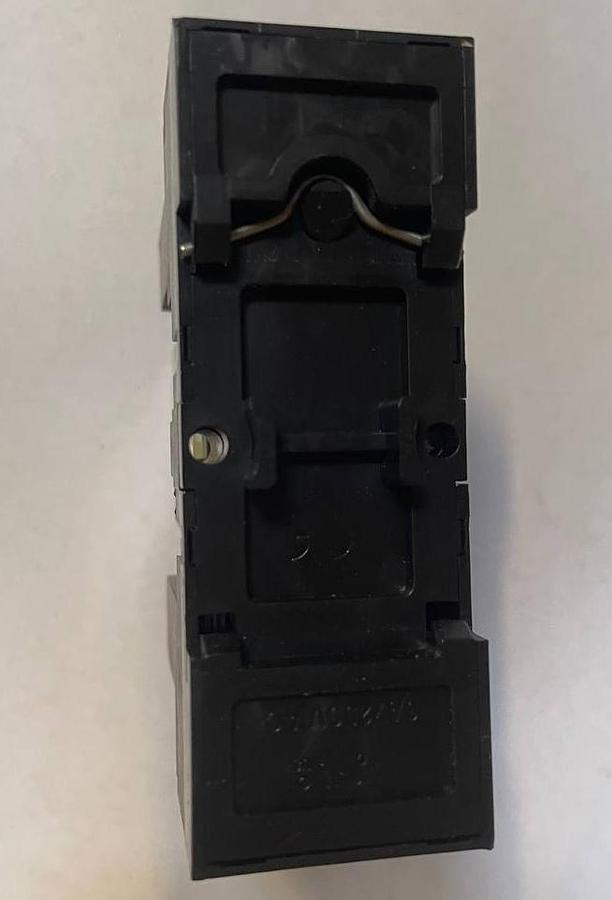

• Mounting: On a standard DIN rail (using the included socket).

Technical Advantages:

• Compact Size: High packing density due to the ability to control up to 4 circuits in a single, narrow housing.

• Durability: Electrical life exceeds 100,000 cycles under full load.

• Ease of maintenance: Clear terminal markings on the connector block simplify installation and diagnostics.

Application areas:

• Industrial automation systems (PLC).

• Pump and ventilation control cabinets.

• Relay protection and signaling.

• Isolation of control circuits with different voltage levels.
