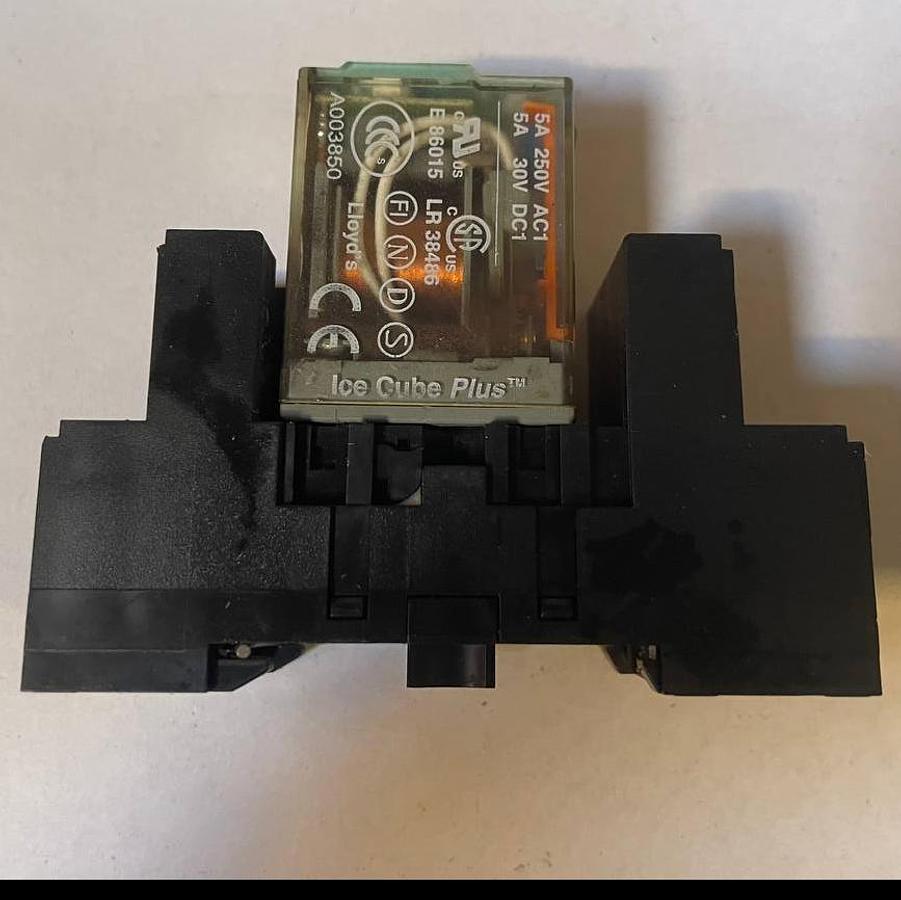

Releco by ComatReleco Releco QR-C (DC24V) Series Intermediate Relay (Ice Cube Plus)

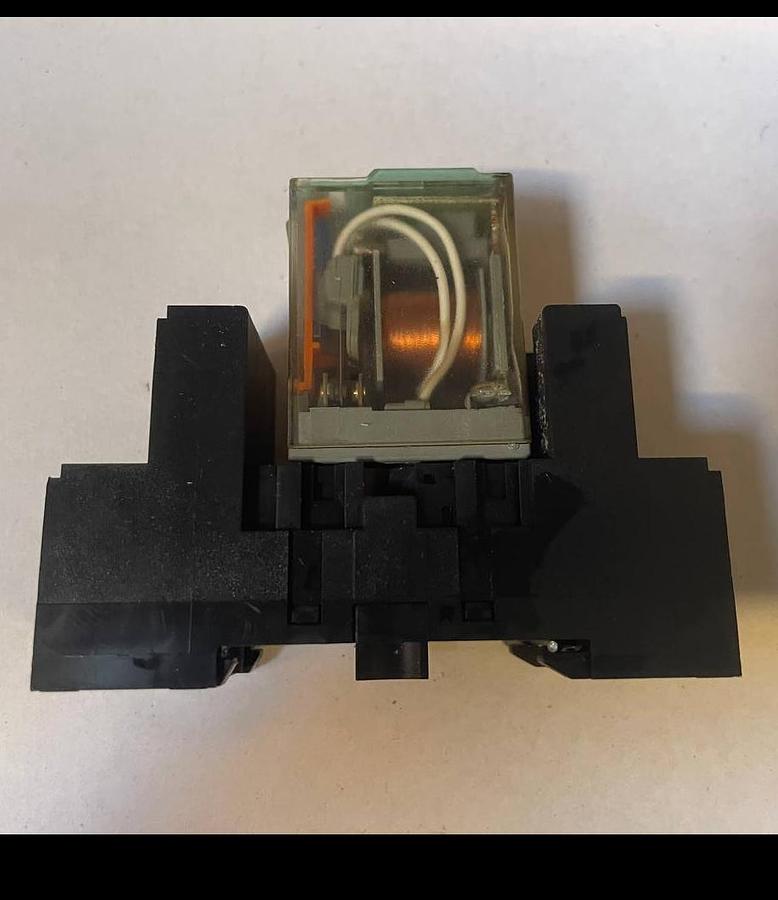

This is a professional intermediate relay from the premium Ice Cube Plus™ series from the European manufacturer Releco (part of the ComatReleco group). It comes with an original socket (socket) for DIN rail mounting.

Technical Description: Releco QR-C Series Intermediate Relay (Ice Cube Plus)

The Releco QR-C (DC24V) is a high-quality, industrial-standard electromagnetic relay known for its exceptional reliability and advanced diagnostic features. The Ice Cube Plus™ series is designed for harsh environments and critical automation applications.

Key Features:

• Manufacturer: Releco by ComatReleco.

• Series: QR-C (Ice Cube Plus).

• Coil Voltage: 24 VDC.

• Contact Configuration: 4 Changeover Contacts (4 C/O / 4PDT).

• Switching capacity:

• 5 A at 250 V AC (AC1).

• 5 A at 30 V DC (DC1).

• Housing material: Transparent impact-resistant polycarbonate (for visual inspection).

Unique features and functionality:

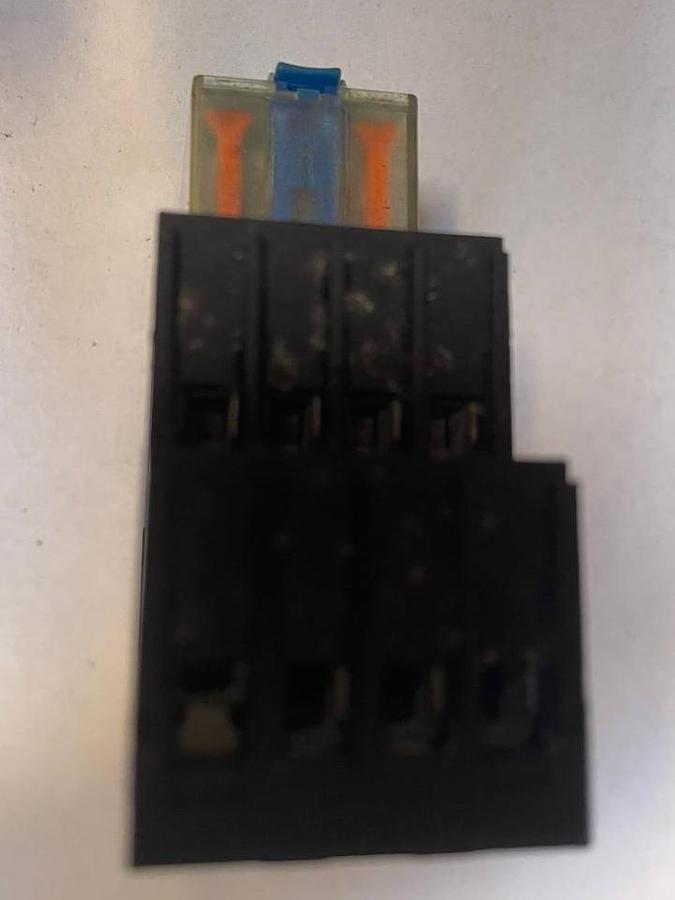

• Integrated test button (blue): Allows manual activation of the contacts (without energizing the coil) to test the actuators. It has two positions: push-button without latching and latching (by lifting the lever).

• LED indicator and mechanical flag: Dual status monitoring system. The LED lights when energized, and the orange indicator shows the physical position of the contacts.

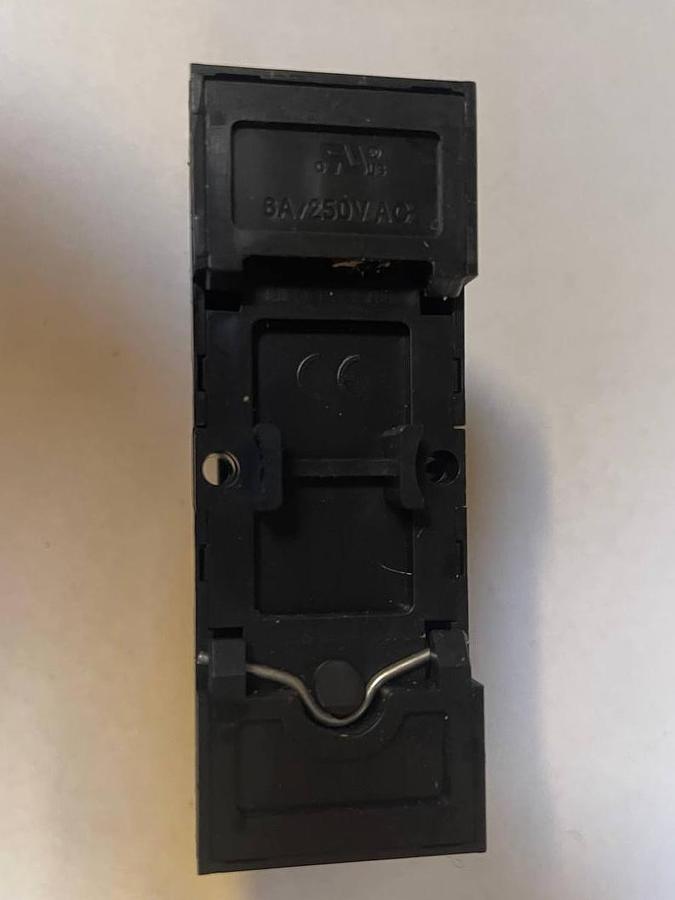

• Removable socket: Allows quick relay replacement without removing the wiring. The terminals on the socket are clearly marked with numbers and functions (A1/A2, 11-14, etc.).

• Protective diode (optional in this series): Suppresses reverse current pulses, protecting PLC outputs from damage.

Customer benefits:

• European quality: Made in Spain, meets the most stringent international standards (CE, CSA, UL, Lloyd's).

• Durability: Designed for intensive use in machine tool, elevator, and industrial control systems.

• Safety: High electrical insulation strength between the coil and contacts.

Applications:

• Isolation and amplification of PLC signals.

• Process control systems.

• High-reliability electrical panel equipment.

Replacement advice: The Releco QR-C series relay is a direct analog and high-quality replacement for the Schneider Electric RXM4, Omron MY4, and Finder 55.34 series.
