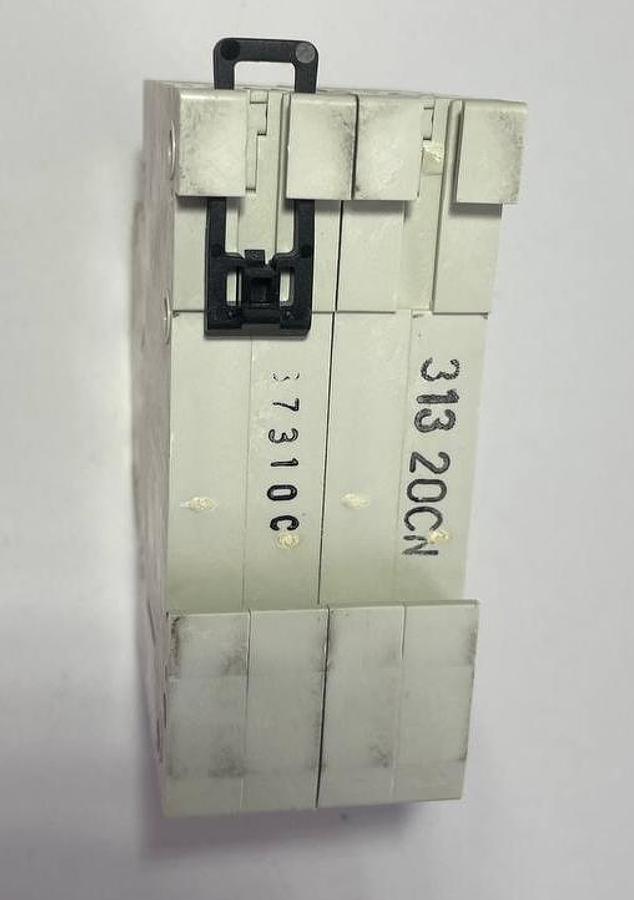

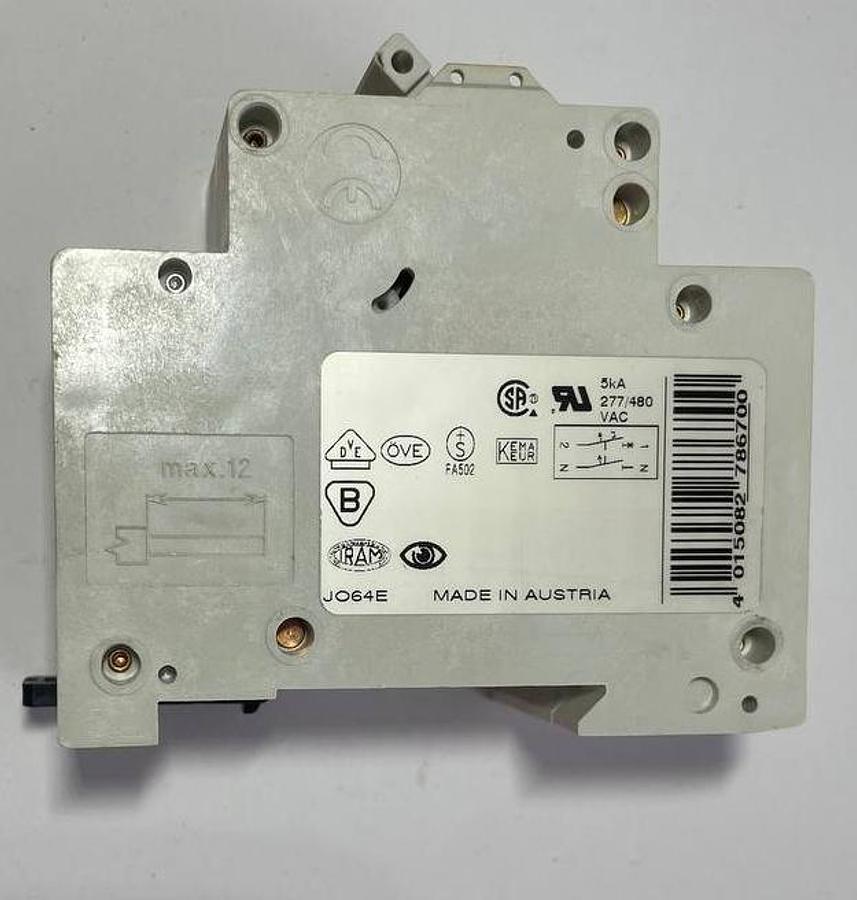

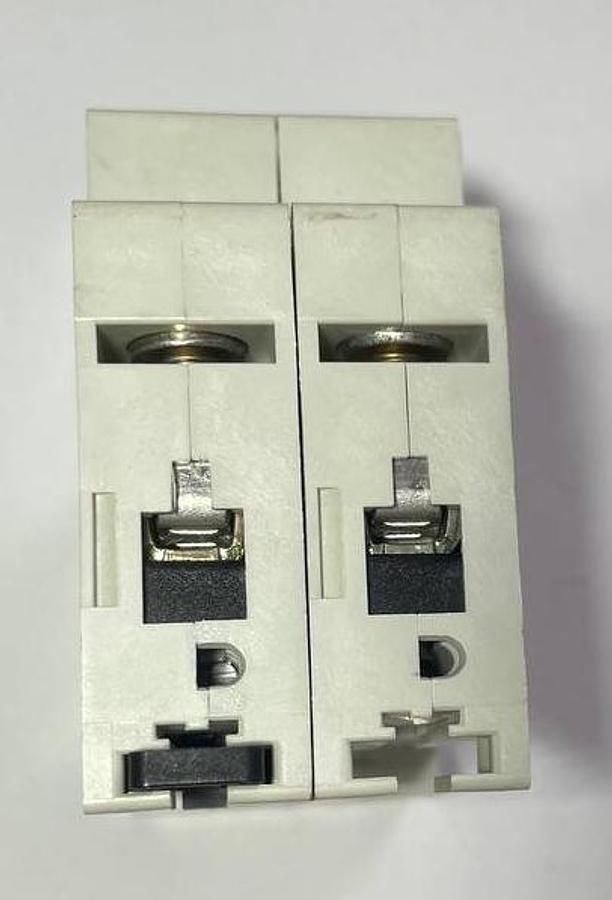

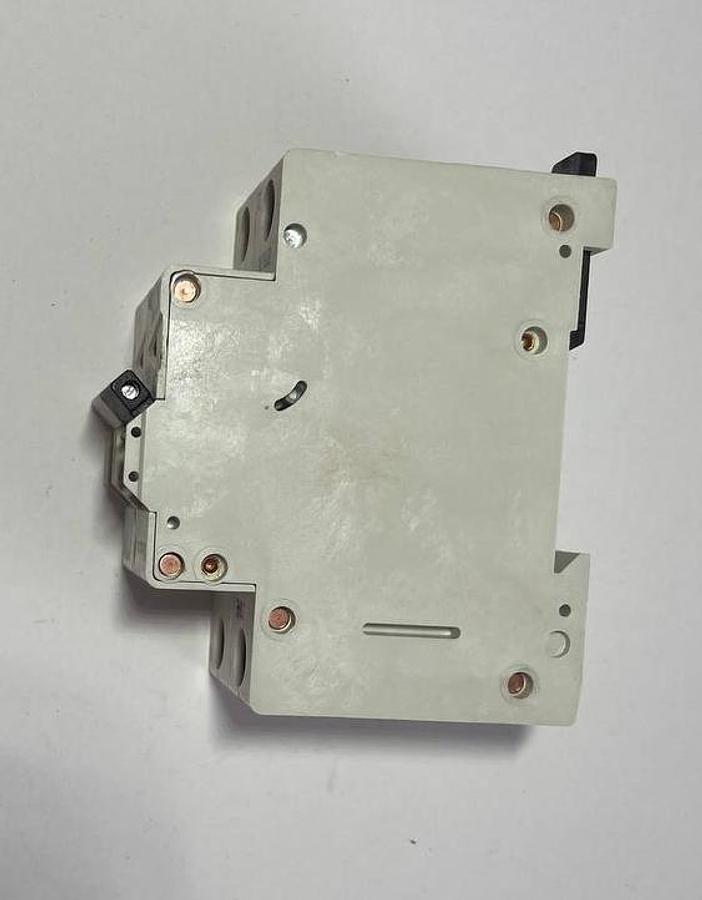

Moeller (Eaton) FAZ-C10/1N Circuit Breaker

Moeller (Eaton) FAZ-C10/1N Circuit Breaker

A professional modular protection device from the world leader in electrical engineering. The FAZ series offers increased reliability and is designed for both industrial and high-quality domestic applications.

📋 Technical Specifications:

• Manufacturer: Moeller (Eaton), Austria.

• ​​Model Number: FAZ-C10/1N.

• Rated Current: 10 A (suitable for lighting circuits or socket outlets with loads up to 2.2 kW).

• Number of Poles: 1+N (two-module design with phase and neutral conductor separation for maximum safety).

• Tripping Characteristic: C (standard tripping delay, protection of circuits with moderate inrush currents).

• Rated breaking capacity: 15 kA (high short-circuit withstand capacity, ensuring a long service life).

✨ Key benefits:

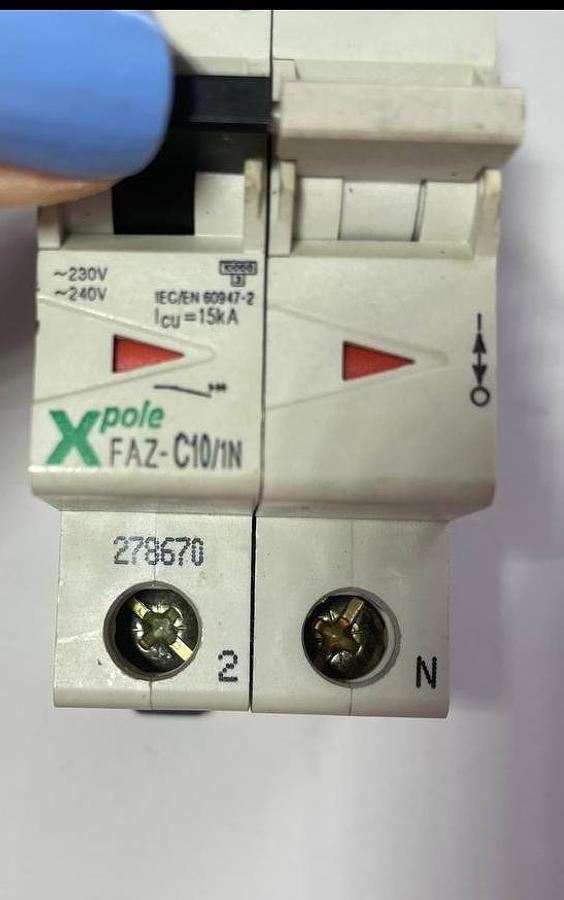

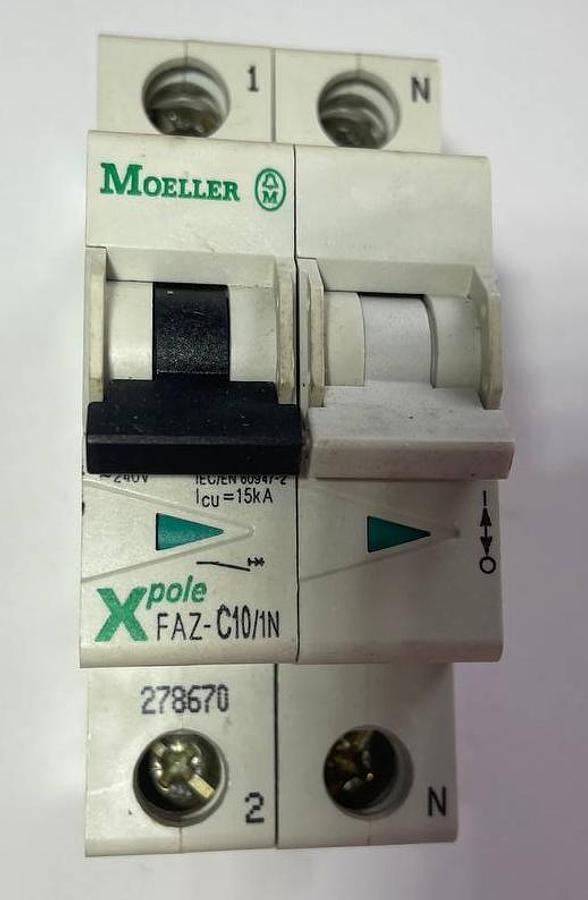

• Contact position indication: A color window on the front panel (red - on, green - off) allows for visual monitoring of the network status.

• High build quality: Made in Austria, guaranteeing strict compliance with European safety standards.

• Universal mounting: Quickly installs on a standard DIN rail.

• Safety: Double circuit breaker (phase + neutral) ensures complete line isolation during disconnection.

🛠 Application:

Ideal for protecting critical lines in private homes, apartments, and offices where uncompromising electrical reliability is required.
