Moeller (Eaton) FAZ-C10/1N Circuit Breaker

This compact modular circuit breaker is designed to protect electrical circuits from overloads and short circuits.

The device configuration includes one protected phase pole and one disconnectable neutral pole (1P+N), ensuring simultaneous safe disconnection of both the phase and neutral conductors upon tripping.

This model is designed for installation in residential, commercial, and industrial distribution boards.

Main Technical Parameters

Electrical Specifications:

Pole Configuration: 1 phase pole + N (neutral).

Ultimate Breaking Capacity: 5 kA.

Rated Operating Voltage: 277/480 VAC.

Tripping Characteristic (Curve Type): B (as per factory marking on the enclosure).

Installation and Design Features

Connection Parameters:

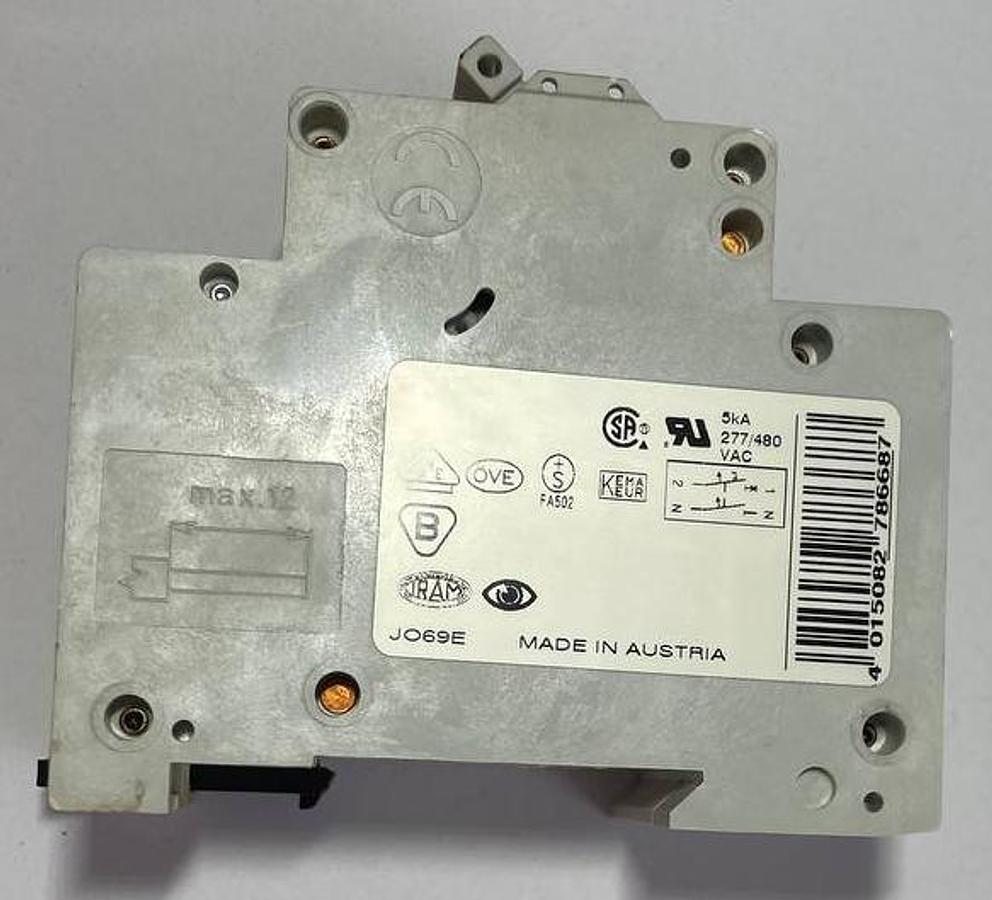

Maximum Cable Stripping Depth/Length: 12 mm (indicated by the "max.12" marking on the enclosure). Mounting type: Standard 35 mm DIN rail.

Safety and international certification:

The device is made of high-quality heat-resistant plastic and certified by leading international and European quality control institutes:

KEMA-KEUR (Netherlands)

ÖVE (Austria)

CE (European Union Conformity)

CSA and UR (US and Canadian Safety Standards)

IRAM (Argentina)

Model advantages

Austrian quality: Manufactured in Austria (Made in Austria), guaranteeing strict adherence to European assembly standards and the reliability of internal mechanisms.

Maintenance safety: Simultaneous switching of the phase and neutral conductors increases overall network safety during maintenance work.

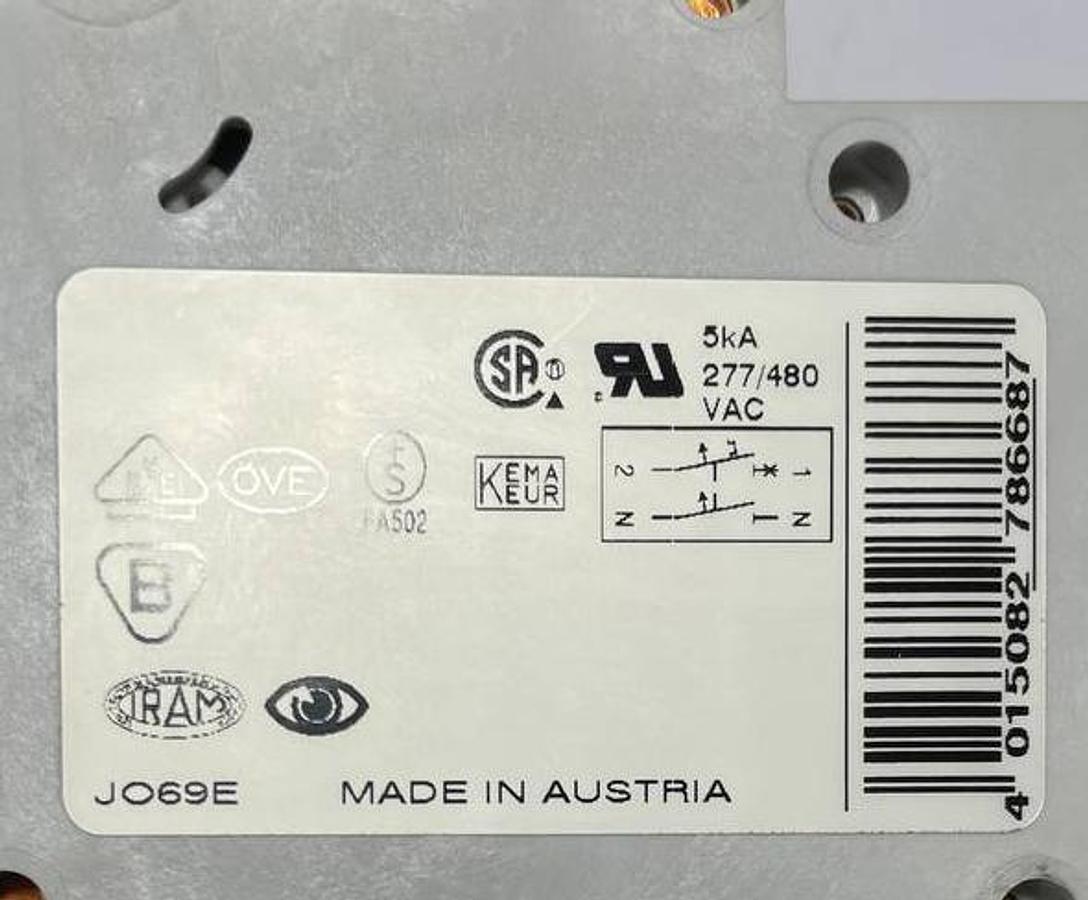

Clear indication: The connection diagram and certification codes located directly on the side panel facilitate the design and inspection of electrical panels by inspection authorities.

Country of origin: Austria.
