Moeller (Eaton) FAZ-C16/1N Circuit Breaker

Moeller Xpole FAZ-C16/1N Circuit Breaker

Product Description

The high-quality Xpole series modular circuit breaker from Moeller is designed to effectively protect electrical circuits from overloads and short circuits. The device features a two-pole design (one protected phase pole and one disconnectable neutral pole – 1P+N), ensuring simultaneous safe disconnection of both the phase and neutral conductors. It is ideal for use in commercial, residential, and critical industrial electrical installations.

Main Technical Parameters

Electrical Specifications:

Part Number / Model: FAZ-C16/1N

Rated Current (I_n): 16 Amps.

Tripping Characteristic (Curve): C (optimal for loads with moderate inrush currents).

Pole Configuration: 1 protected pole + N (neutral).

Ultimate breaking capacity (I_{cu}): 15 kA (according to IEC/EN 60947-2) — guarantees high reliability under severe emergency conditions.

Nominal voltage: ~230V / ~240V AC.

Installation and design features

Indication and connection:

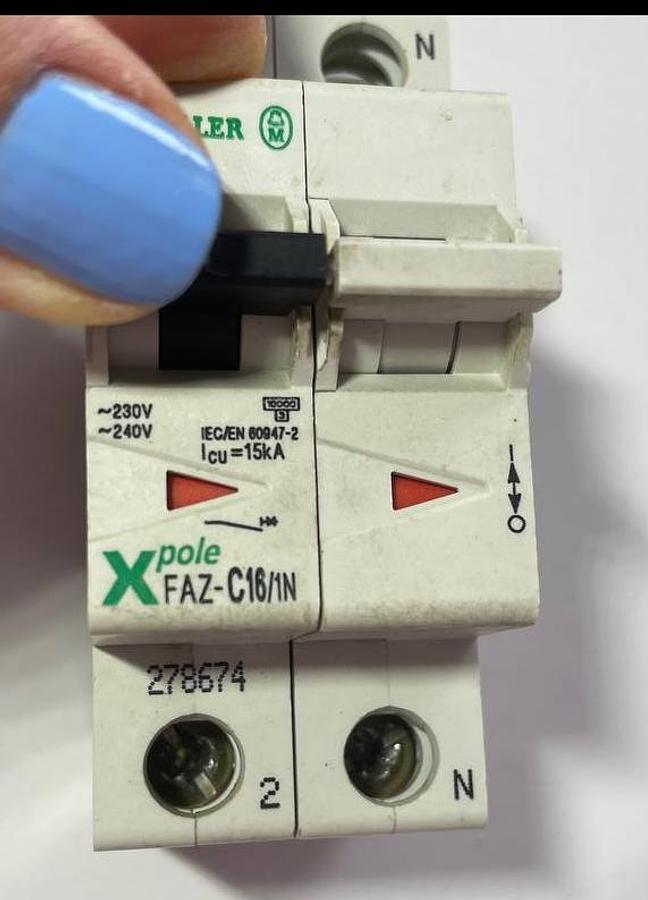

The front panel features integrated mechanical contact position indicators (red — closed, green — open), which function independently of the handle position.

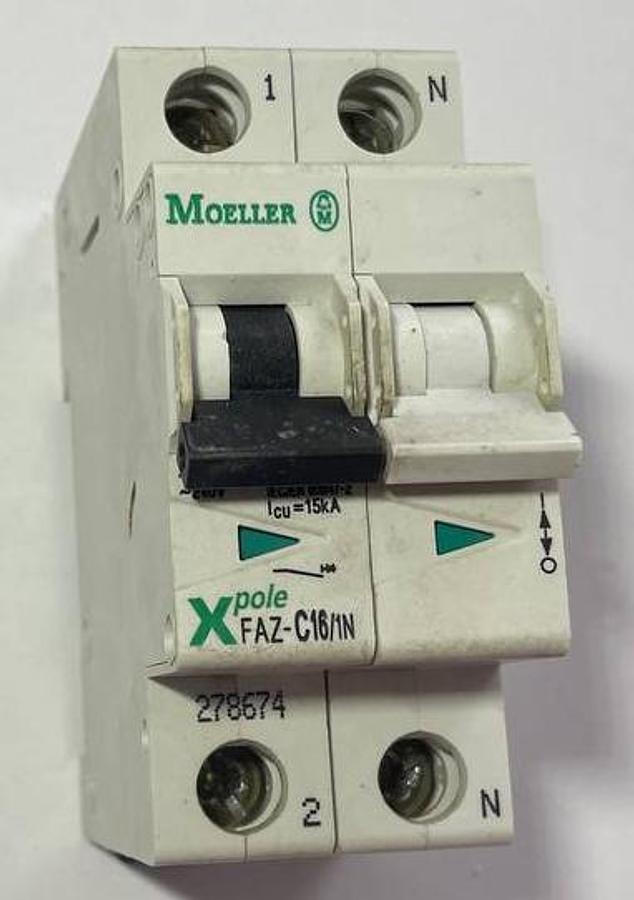

Clearly marked terminals: 1-2 for the live conductor and N-N for the neutral.

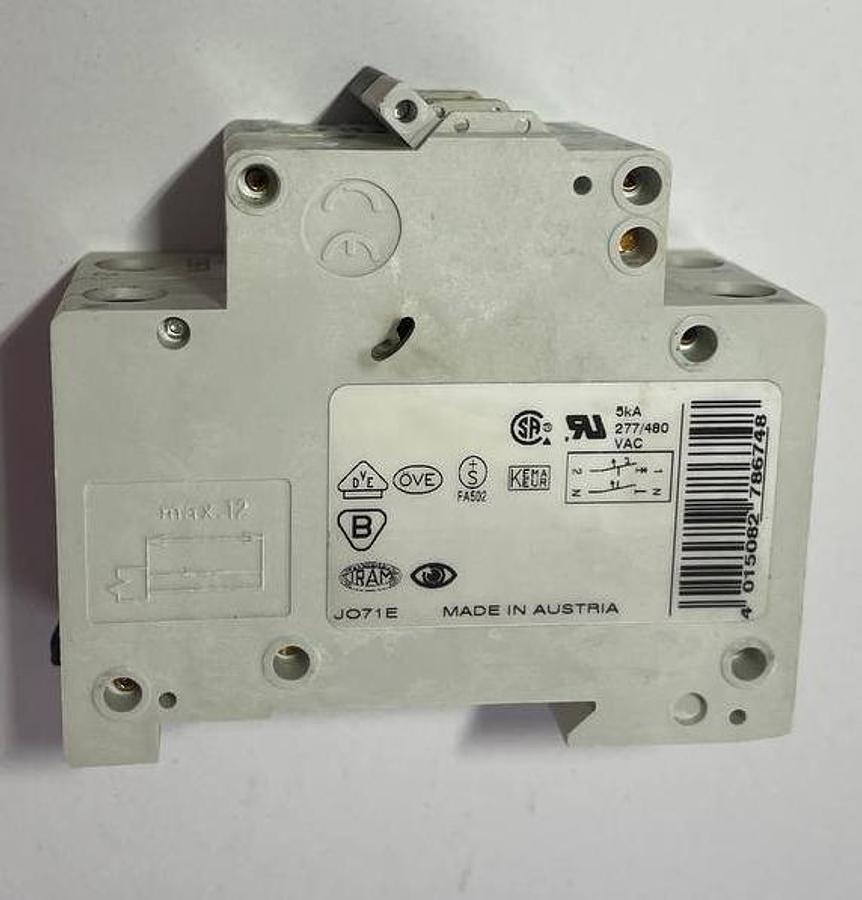

Maximum cable stripping depth/length: 12 mm (marked max. 12 on the side of the enclosure).

Mounting type: Quick-fit to a standard 35 mm DIN rail.

Safety and International Certification:

The device is manufactured in Austria (Made in Austria) and certified according to strict international regulations, as confirmed by the following marks on the housing:

CE (Conformity with European Union Standards).

KEMA-KEUR (Netherlands), ÖVE (Austria), VDE (Germany).

CSA and UR (North American Safety Standards).

Model Advantages

Premium Segment: The FAZ series from Moeller/Eaton is recognized as the benchmark for reliability in industrial automation thanks to its increased breaking capacity of 15 kA.

Austrian Quality: Assembly in Austria guarantees the durability of the internal mechanisms and the stability of the thermal and electromagnetic tripping devices.

Increased Safety: Simultaneous neutral disconnection eliminates the risk of electric shock when potential appears on the neutral conductor.

Country of Origin: Austria.
