Schneider Electric Telemecanique TeSys K LP4K0901BW3 Mini Contactor
Schneider Electric Telemecanique TeSys K LP4K0901BW3 Mini Contactor
Contact us for price
Available quantity:14
Description

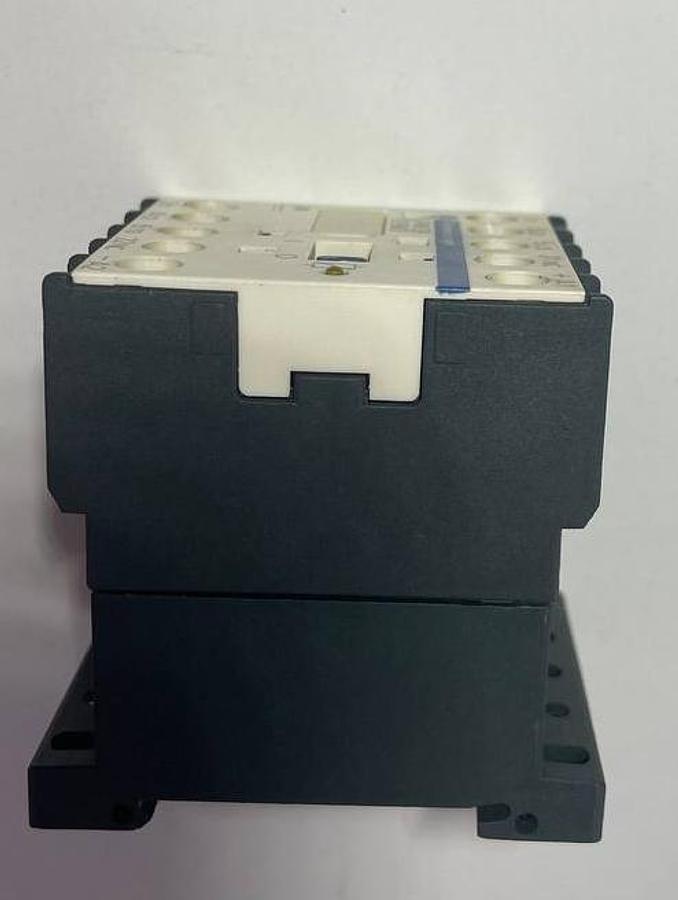

Telemecanique TeSys K LP4K0901BW3 Mini Contactor (Schneider Electric)
Product Description
The TeSys K series LP4K0901BW3 industrial miniature contactor is an ultra-compact switching device designed for remote control of low-power three-phase electric motors and inductive loads. Thanks to its minimal dimensions and built-in peak voltage limiting module (protective diode), the device is ideal for integration into automation systems with limited space inside control panels and for direct control from controller (PLC) outputs.
Main Technical Parameters
Switching Capabilities (AC-3 Mode):
At 230 V: Controls motors up to 2.2 kW.
At 400 V: Controls motors up to 4 kW.
At 690 V: Controls motors up to 4 kW.
Electrical Specifications:
Part Number / Model: LP4K09 01BW3
Rated Operating Current (AC-3 Mode): 9 Amps.
Thermal Current (I_{th}): 20 Amps (at temperatures up to 40°C).
Control Coil Type and Voltage (code BW3): 24 VDC with reduced power consumption and built-in suppressor diode.
Insulation Voltage (U_i): 690 V.
Impact Voltage (U_{imp}): 8 kV.
Contact Configuration:
Power Contacts: 3 Poles (NO - Normally Open).
Built-in Auxiliary Contacts: 1 NC (Normally Closed / Breaking).
Installation and Connection
Connection Parameters:

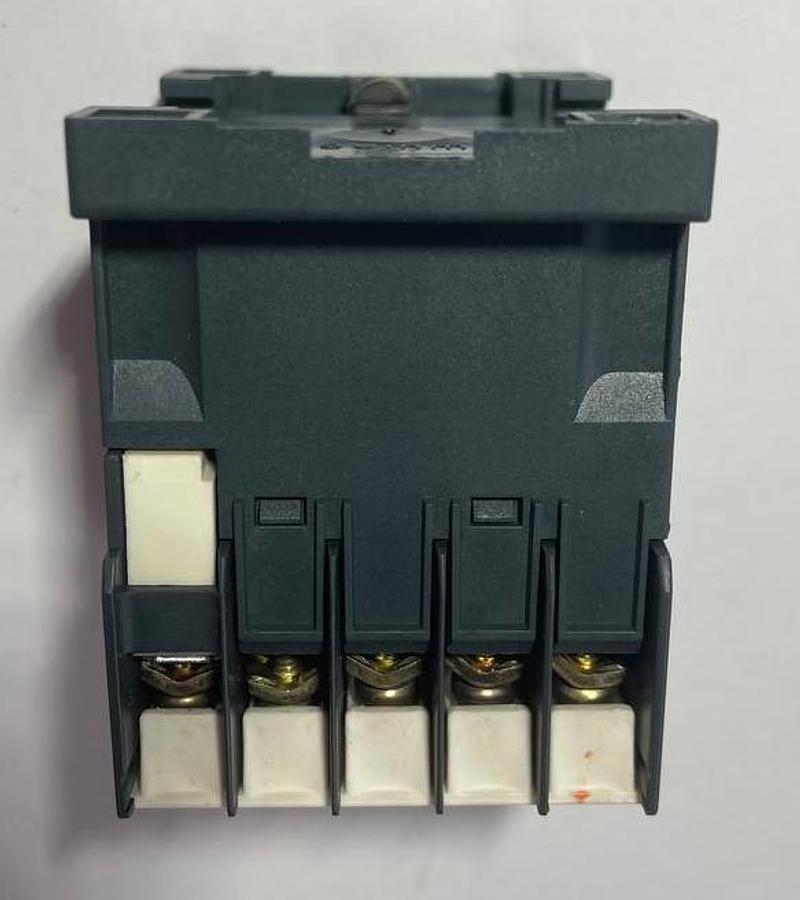

Wire Used: Copper (CU), AWG 12–18. Recommended cable temperature range: 60/75°C.
Terminal screw tightening torque: 0.8 Nm (7 lb.in).

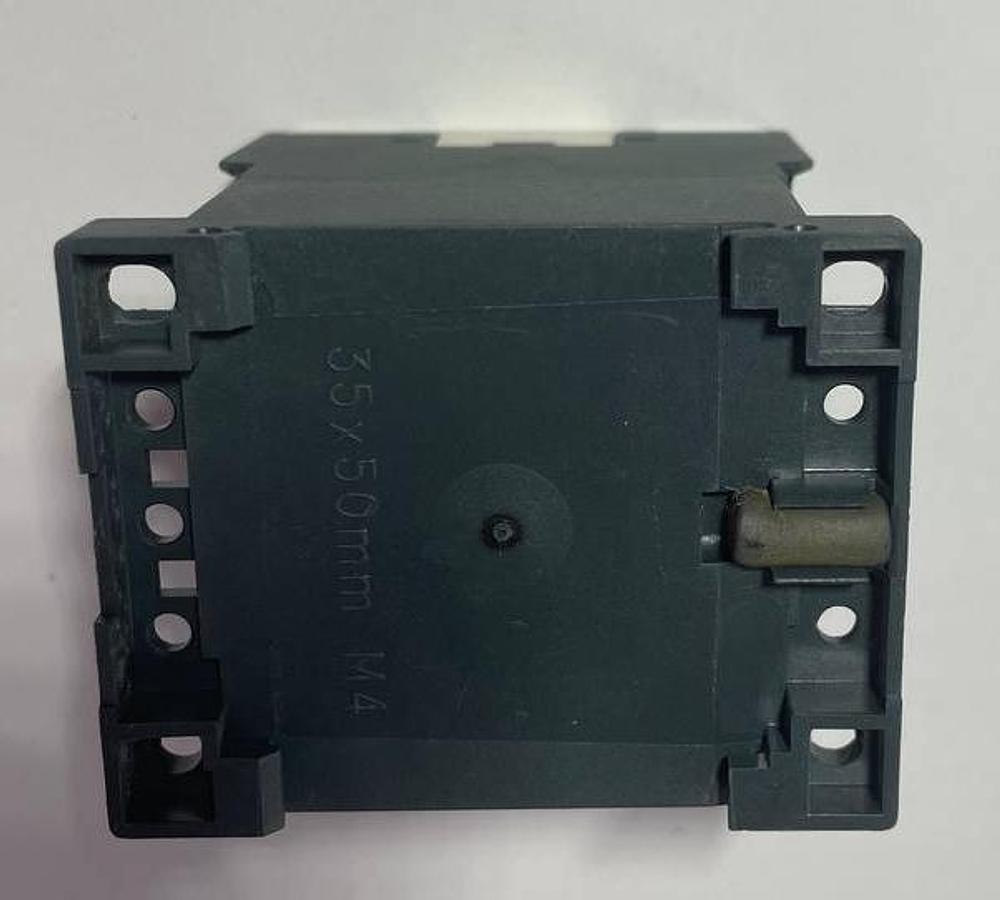

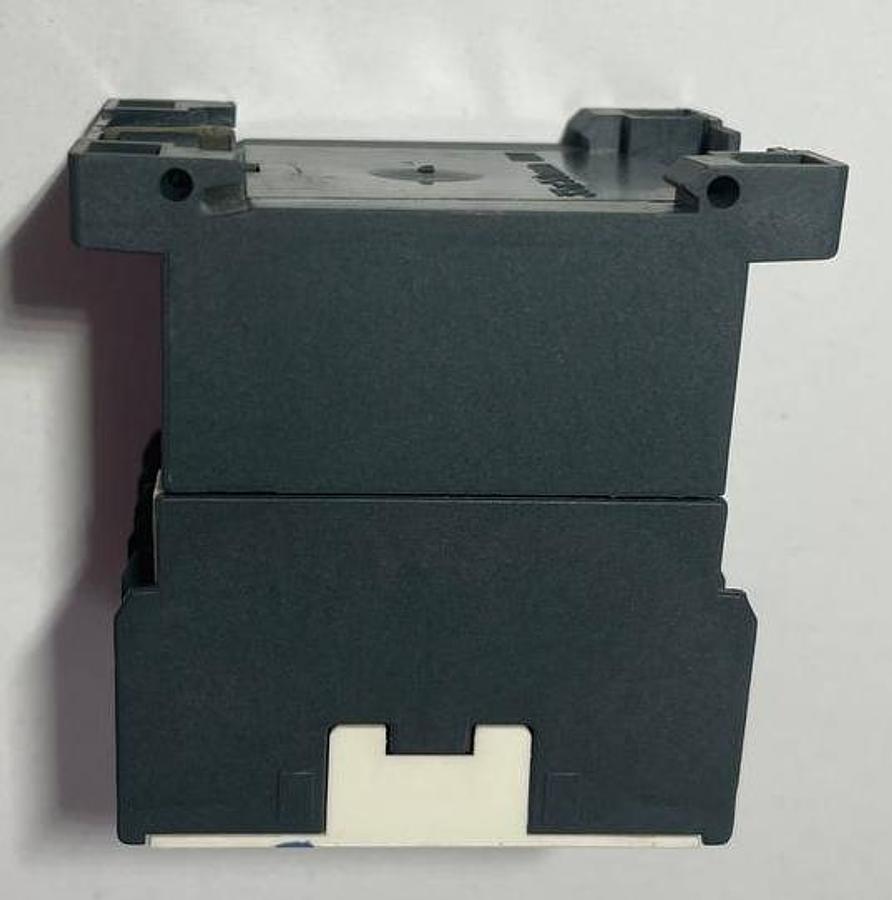

Installation: Mounts on a standard 35 mm DIN rail or panel using screws.

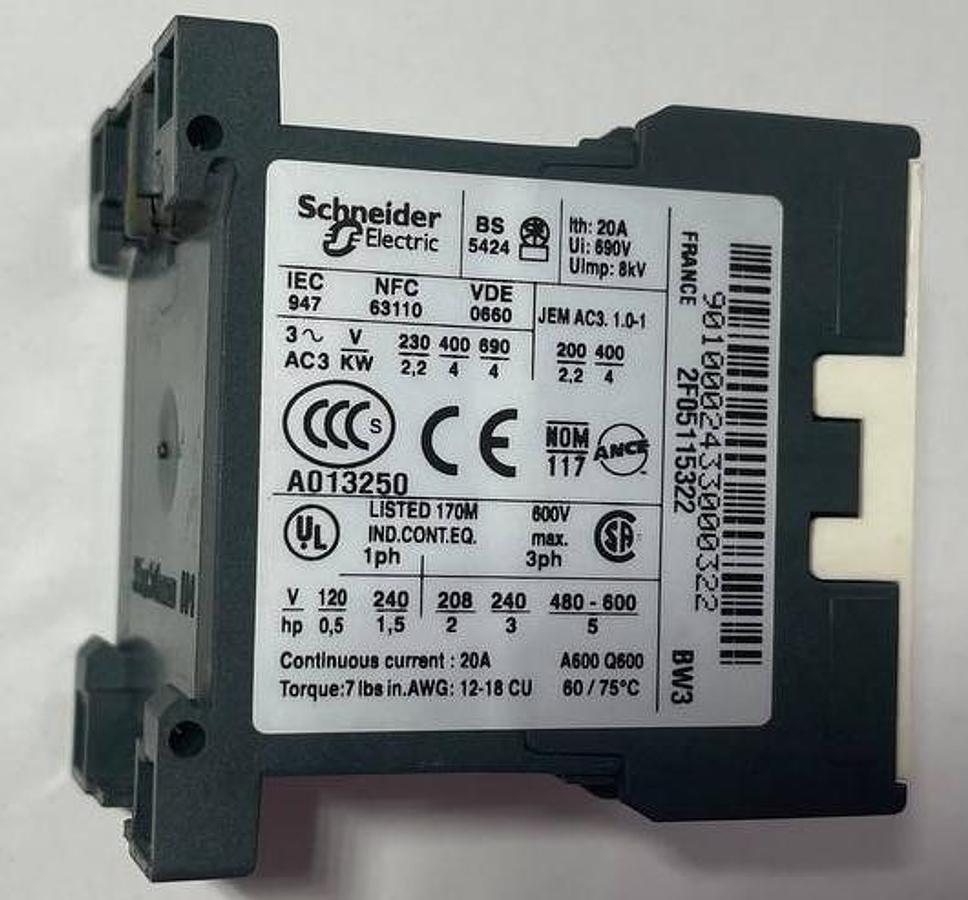

Safety and international certification:
The device fully complies with strict industry standards:
IEC 947, VDE 0660, NFC 63110, BS 5424, JEM AC3.1.0-1.
Certifications: CE, UL (Listed 170M), CSA, CCC, NOM 117.
Model advantages

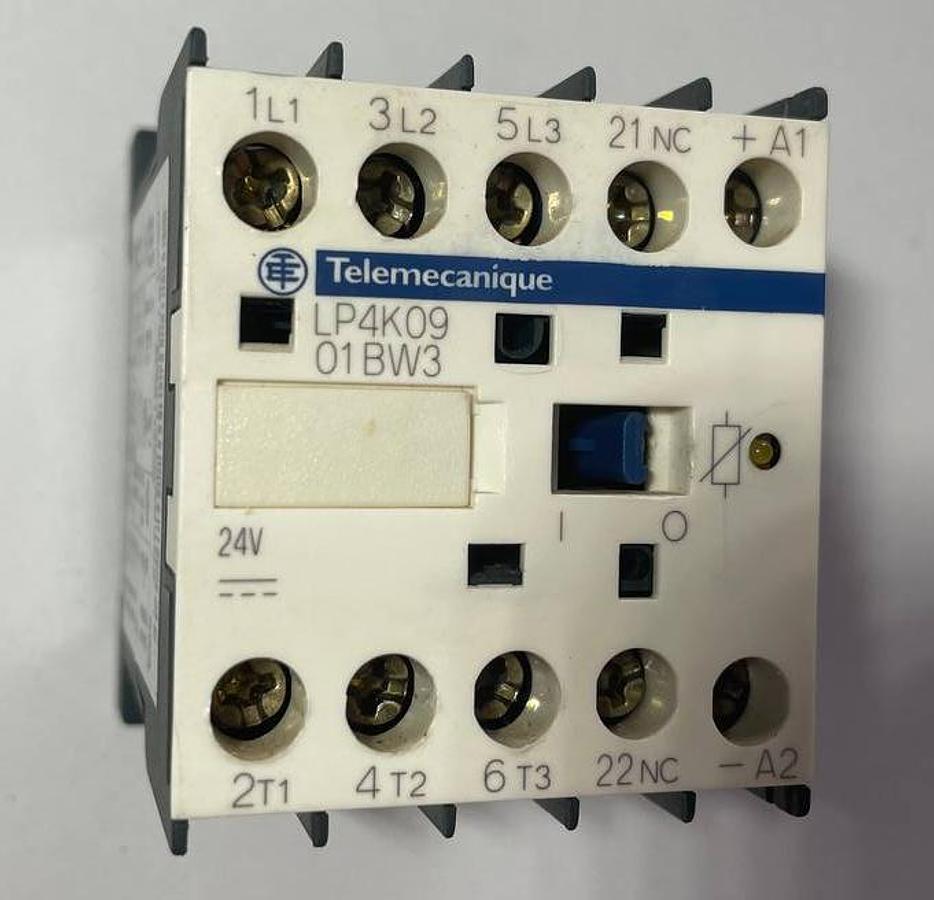

Space saving: The ultra-compact form factor of the TeSys K series allows for a significant reduction in the size of modular control cabinets. Direct PLC control: A 24V DC coil with a built-in voltage limiter (marked with a diode symbol on the front panel) protects the control controller outputs from reverse induction currents.
Visual indication: The device is equipped with a mechanical trip indicator (a blue flag in the center of the front panel).
Country of manufacture: France
Check more searching on our website : https://www.bakeproject.nl
Specifications
| Manufacturer | Schneider Electric |
| Model | Telemecanique TeSys K LP4K0901BW3 Mini Contactor |
| Condition | Used |
| Serial Number | LP4K09 01BW3 |
| Stock Number | 00751 |
| Part Number / Model | LP4K09 01BW3 |
| Insulation Voltage (U_i) | 690 V |
| Impact Voltage (U_{imp}) | 8 kV |
| Terminal screw tightening torque | 0.8 Nm (7 lb.in) |
| Country of manufacture | France |
